New RK3576 Single Board Computer: Far exceeds the Raspberry Pi 5

- 2025-07-07-

Thinkcore Technology launches a new product in the field of single board computers (SBCs) - the RK3576 single board computer. This new SBC has powerful performance and is designed to meet the growing needs of edge computing, artificial intelligence applications, and multimedia processing. It can be used as a high-performance single-board computer and embedded motherboard for display, control, network transmission, file storage, edge computing and other scenarios.

RK3576 Single Board Computer

6 TOPS NPU: Powering Lightweight AI & Edge Computing

The board has an independent NPU built in, with a computing power of up to 6TOPS. It adopts a three-core architecture, supports int4/int8/int16/FP16/BF16/TF32, and enables various AI scenarios.

This high - performance NPU accelerates the operation of AI algorithms, making it ideal for applications such as object detection, facial recognition, and intelligent video analytics

RK3576 Single Board Computer

8K Decoding: High-definition image quality

Supports up to 8K@30fps H.264/H.265/VP9/AV2/AVS2 video decoding and 4K@60fps H.264/H.265 video encoding.

The board can easily decode 8K high - resolution video content smoothly, ensures high-quality display output by providing an amazing visual experience, whether it is used for digital signage, media centers, or video streaming applications

RK3576 Single Board Computer

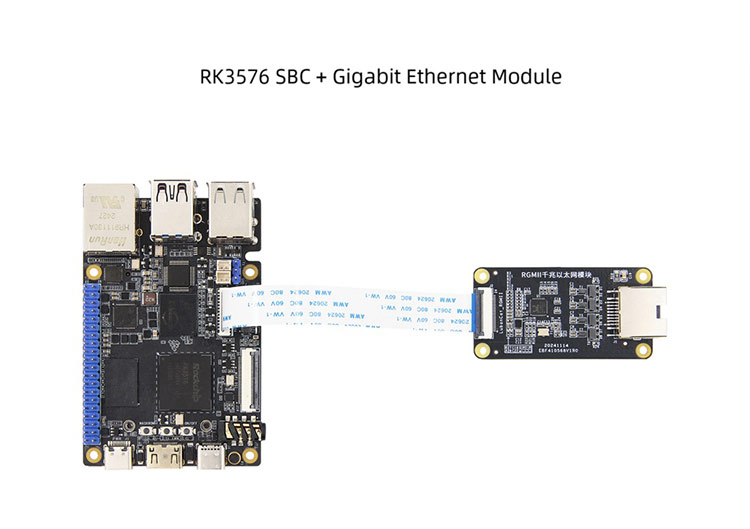

Gigabit Ethernet and USB 3.0: High - Speed Connectivity

The RK3576 SBC is equipped with a Gigabit Ethernet port and USB 3.0 interfaces

the RK3576 SBC Onboard Gigabit Ethernet port and RGMI interface, supporting 1000Mbps data transmission rate.

The Gigabit Ethernet port ensures fast and stable network connections, making possible for quick data uploads and downloads, as well as real - time communication between devices; The USB 3.0 port makes it easy to connect external cameras, storage devices or other peripherals by proving high - speed data transfer rates.

The high-speed data transmission capability makes the RK3576 SBC can meet the demand of data-intensive application

RK3576 Single Board Computer

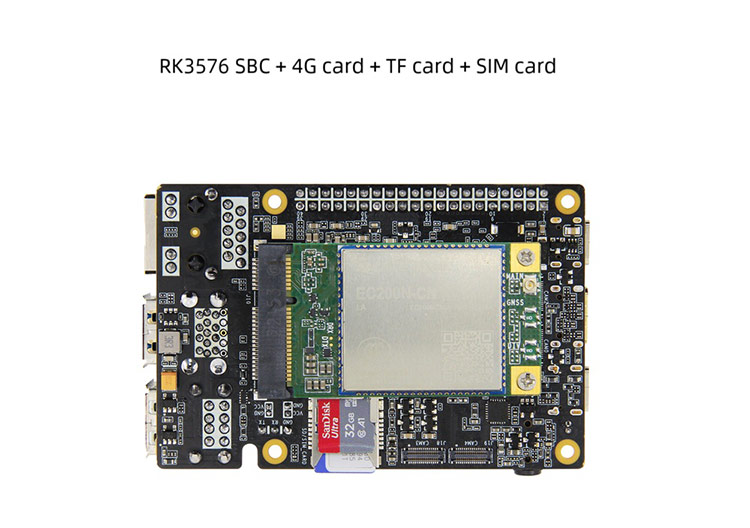

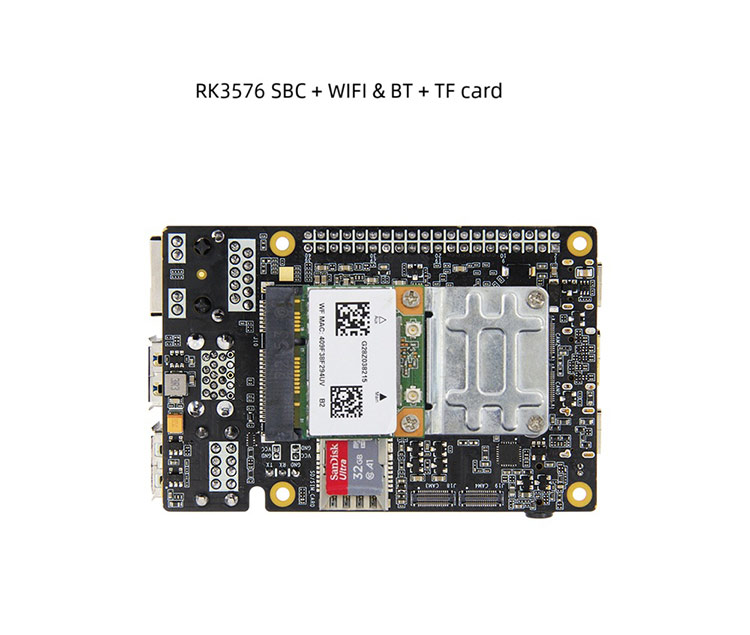

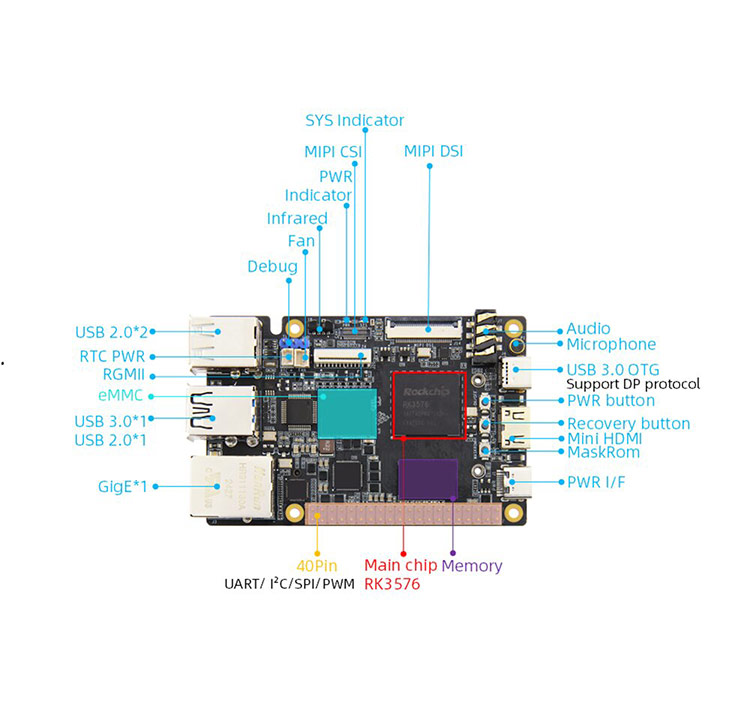

Raspberry Pi - Compatible and Rich Interfaces

One of special features of the RK3576 SBC is that it has 40Pin interfaces (UARTA2C/SPI/PWM) that are compatible with that with Raspberry PI. This is a great attractive for the developer who are familiar with Raspberry PI and want to explore more additional functions with RK3576 SBC. Besides the Raspberry Pi compatible interfaces, the RK3576 SBC also provides abundant other interfaces, including MIPI, HDMI, PCIe, RGMI,

RK3576 Single Board Computer

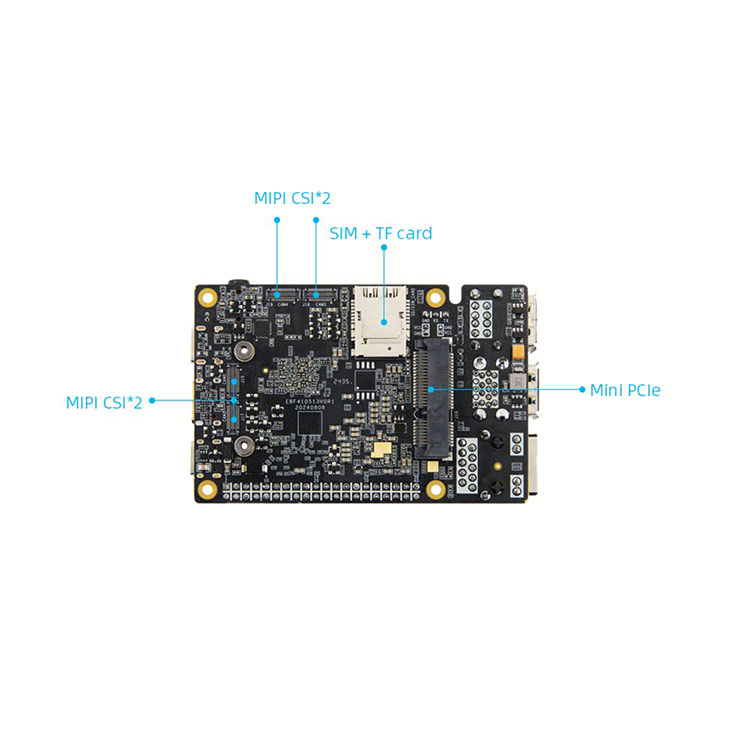

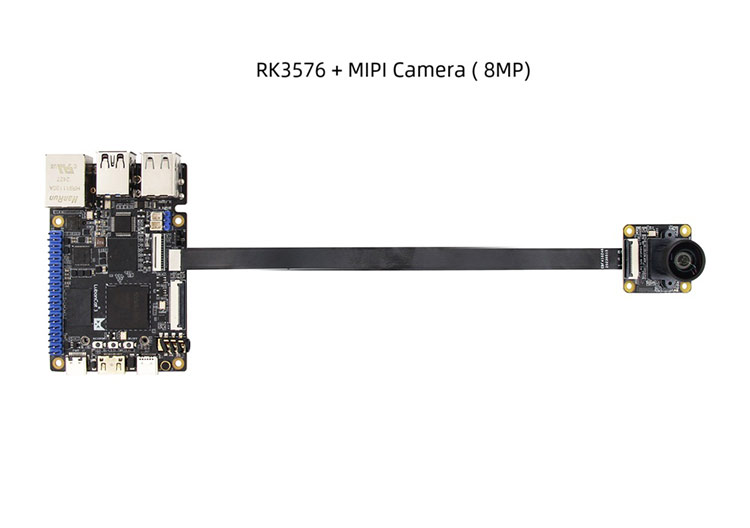

5-channel camera supports

2*15Pin BTB camera interface*5 (front*1, back*4) allows the board to be connected with 5 cameras.

RK3576 Single Board Computer

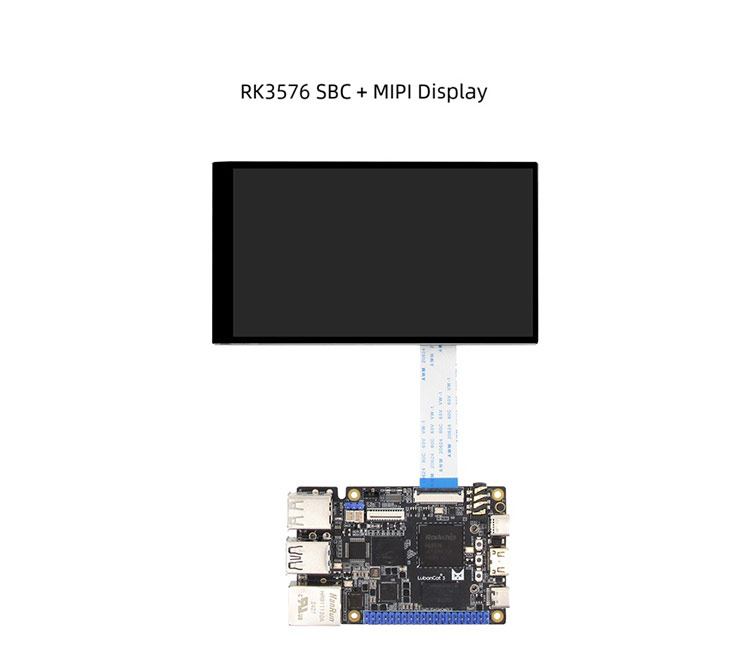

3-screen display supports

The board onboards HDMI 2.1, MIPI DSI, Type-C, supports 3-screen display supports

and supports up to 4K@120fps+2K@60fps+1080P@60fps output simultaneously

RK3576 Single Board Computer

Completely open-source and Free SDK

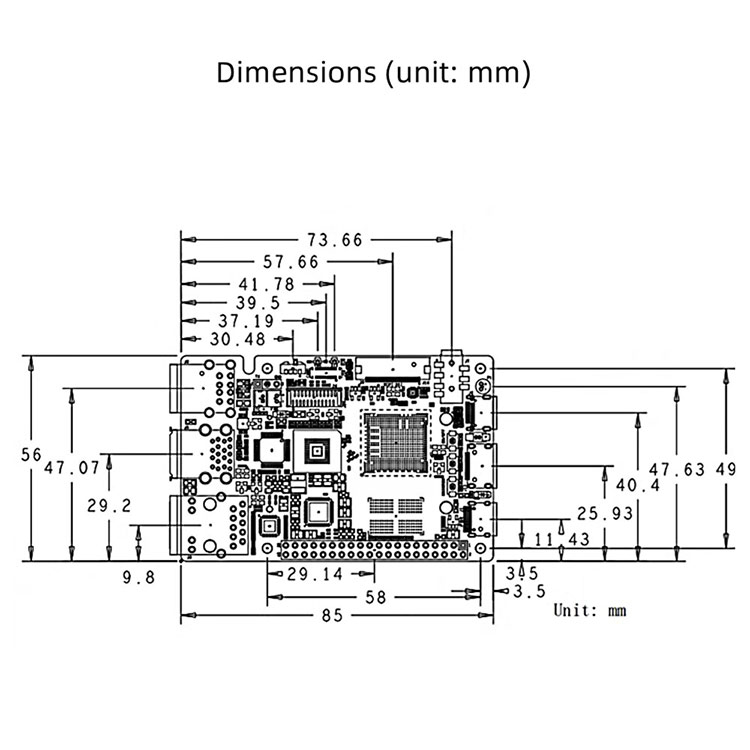

Provides complete SDK driver development package example source code, PDF schematics, dimension drawings, baseboard open source file system image, user manual and other materials to help users further apply this board and save development time. All materials are open source and free to download.

RK3576 Single Board Computer

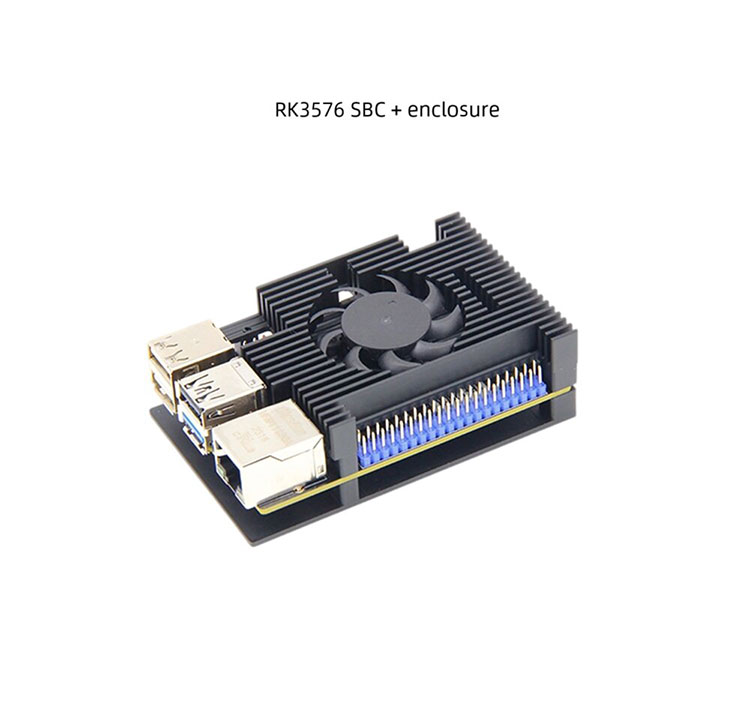

Optional Enclosures for Added Protection and Customization

The enclosure provided by Thinicore that fits the SBC perfectly makes it easy to transform the board into an edge processor, making the RK3576 SBC suitable for both industrial and consumer applications.

RK3576 Single Board Computer

The RK3576 single board computer has now hit the market! Built on powerful features , high - performance capabilities, rich interfaces and wide application, the RK3576 single board computer shall be a good choice for edge-computing and AI application areas. No matter you are developers, engineers or hobbyists , you can use this board to build your Smart solutions!

For more information about the RK3576 Single Board Computer, including technical specifications, pricing, and ordering details, please feel free to contact us!
