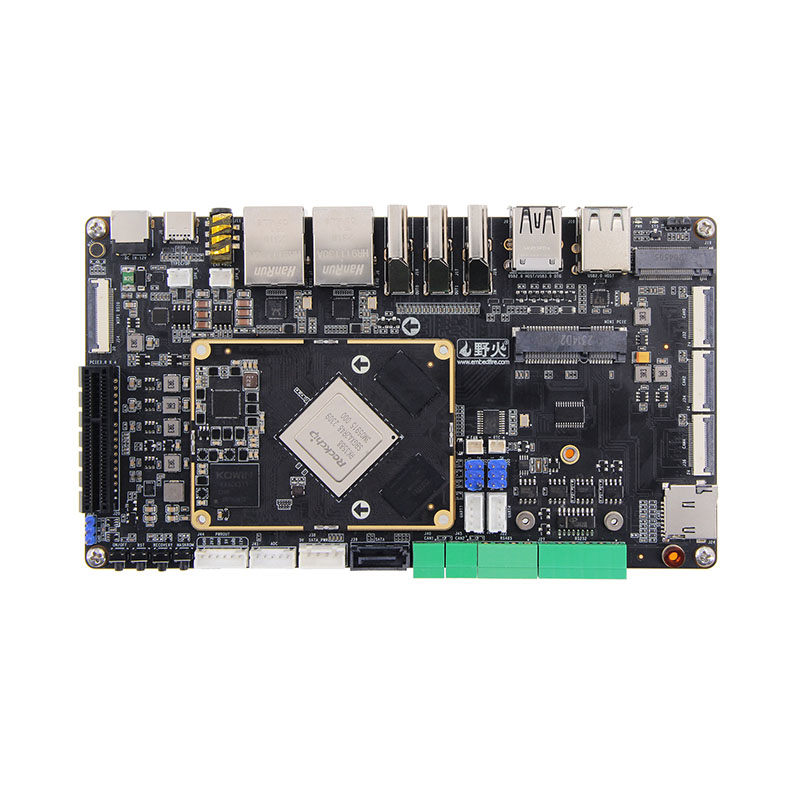

The RK3588 board-to-board development board aims to enable flexible combinations between the core board and functional sub-boards ( carrier board) by adopting a modular design and using standardized interfaces (e.g., PCIe, MXM, high-speed board-to-board connectors)
When compared to integrated board or single board computer, board- to -board motherboard shares the following core advantages:
| Advantage | B2B Development Boards | Traditional MCU Boards |
| Expandability | Modular, hot-swappable | Fixed peripherals, jumper wires |
| Signal Quality | Supports GHz-level signals | Limited to low- speed GPIO/UART |
| Development Speed | Reuse validated modules | Requires full hardware redesign |
| Use Cases | Complex systems (AI/industrial) | Simple control (sensor logging) |
● Powerful SoC: Rockchip RK3588 (8-core Cortex-A76/A55, 6TOPS NPU)
● Modular Design: Flexible B2B Connectors for Custom Expansion
● High-Speed Interfaces: PCIe 3.0, USB 3.1, Dual Gigabit Ethernet, SATA
● Multi-Display: Supports 8K@60fps + 4K@60fps Simultaneous Output
● Industrial-Grade: -40°C to +85°C Operation
● Rich interfaces: MINI PCIe, M.2 M Key, MIPI CSI
● Multi-screen different display: Supports three-screen heterogeneous display and four-screen heterogeneous display. HDMI*2; MIPI DSI*2; Type-C (supports DP protocol)

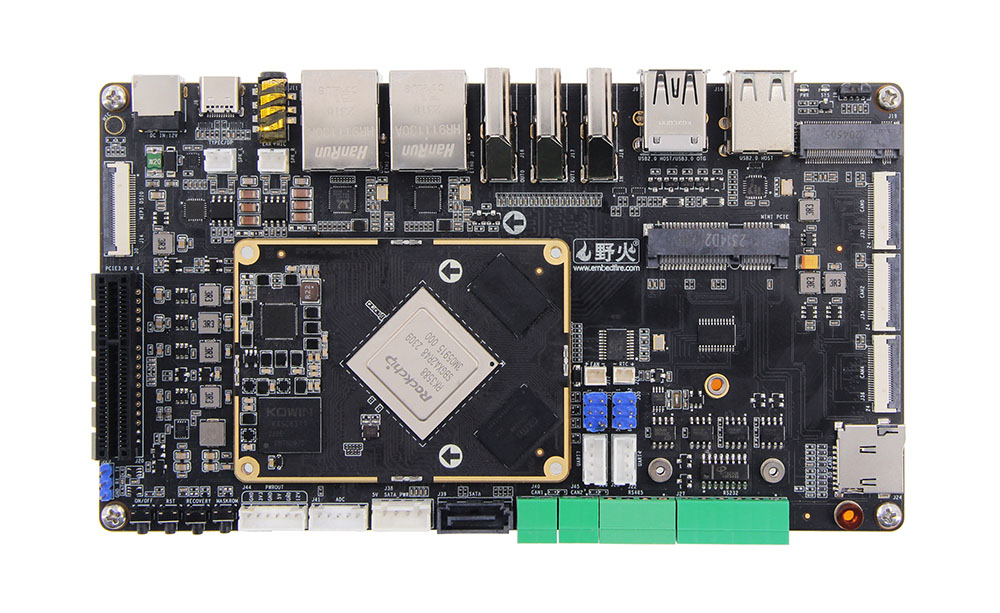

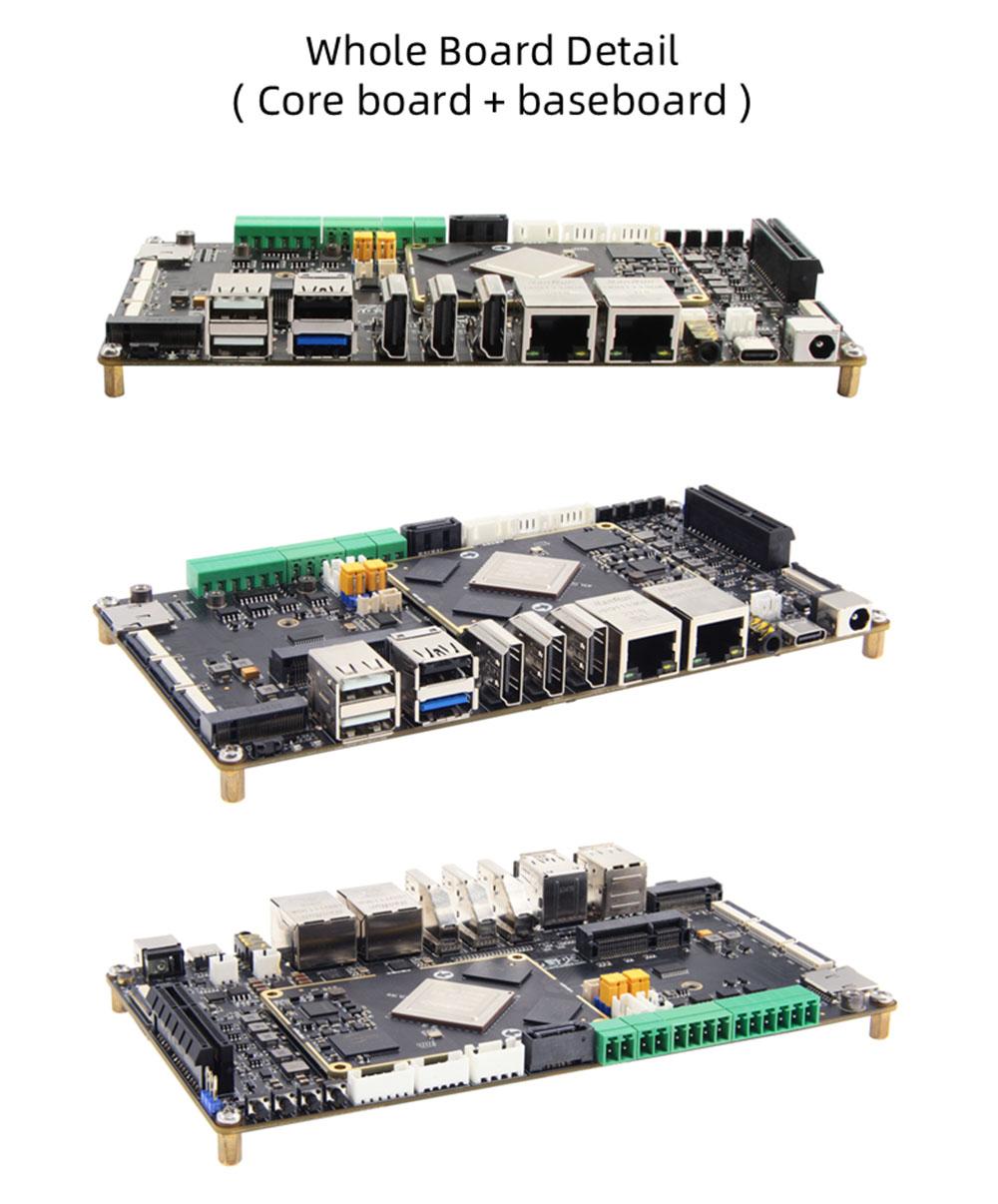

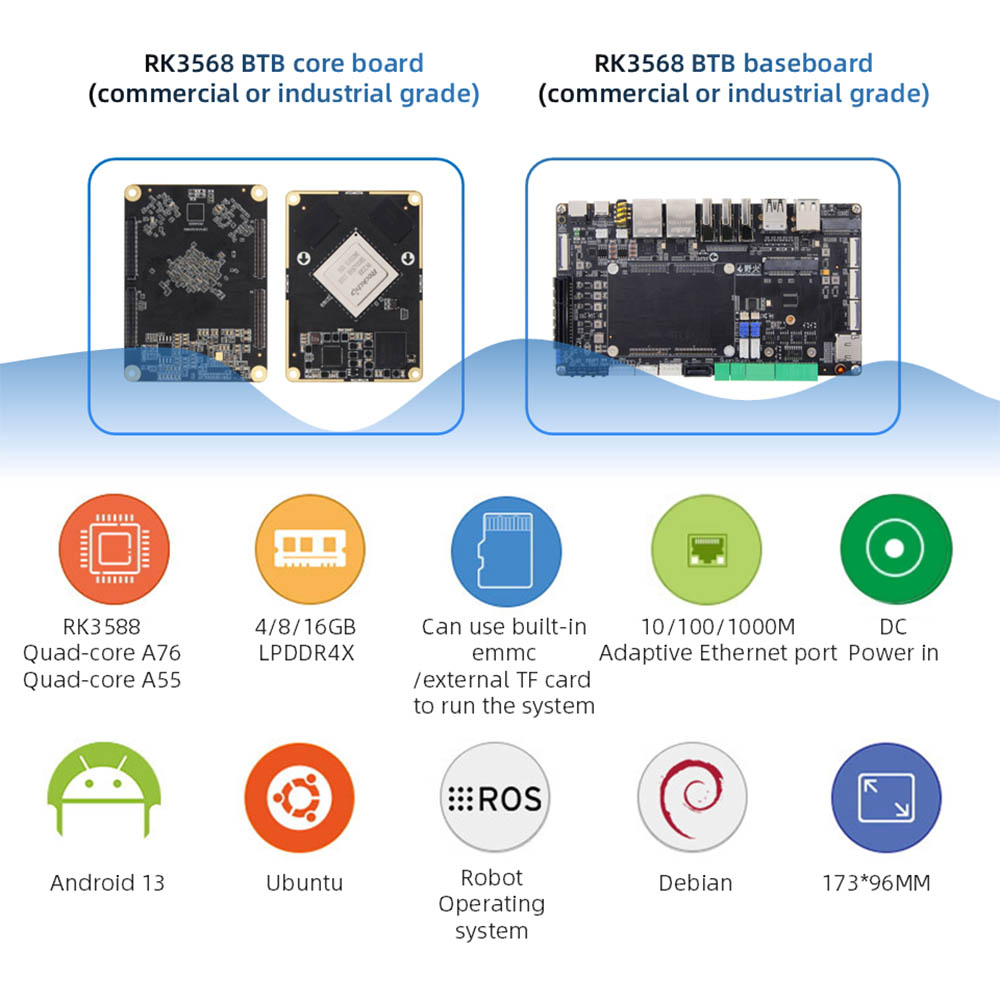

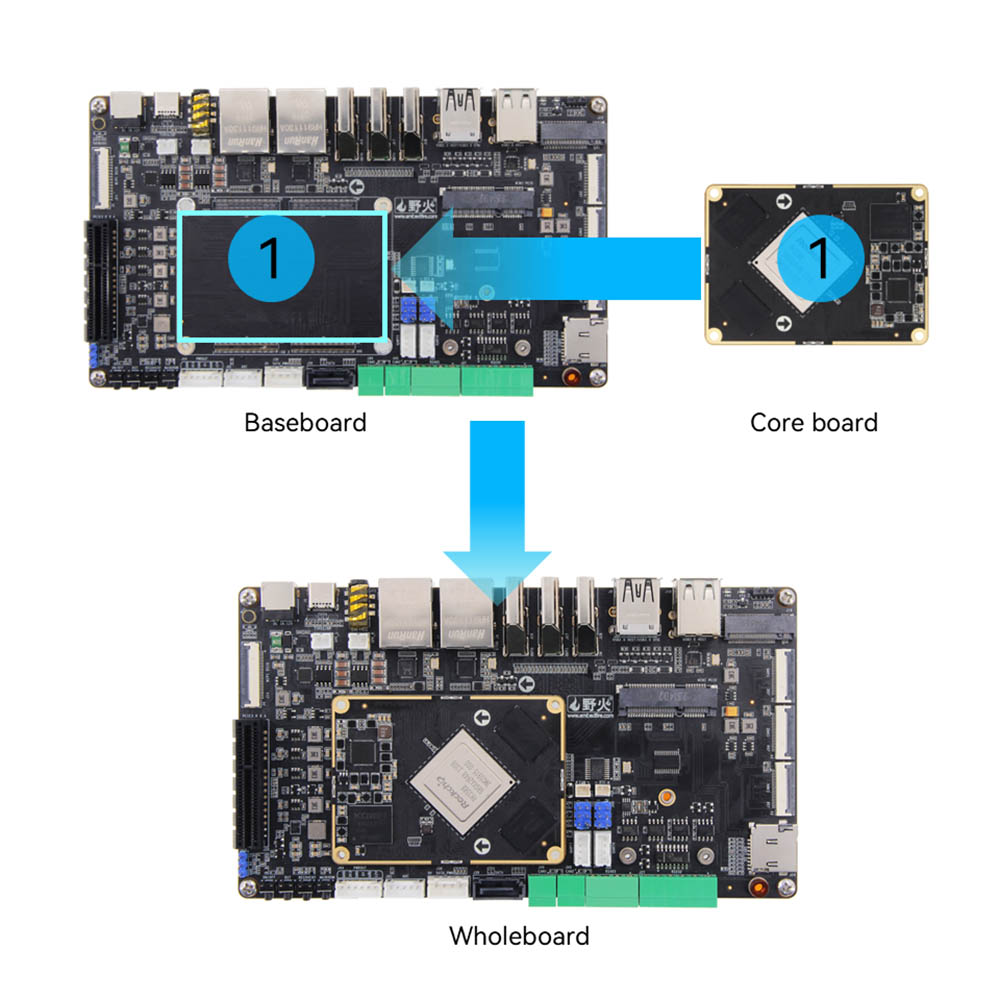

The BTB Motherboard consists of a core board and a carrier board/ baseboard.

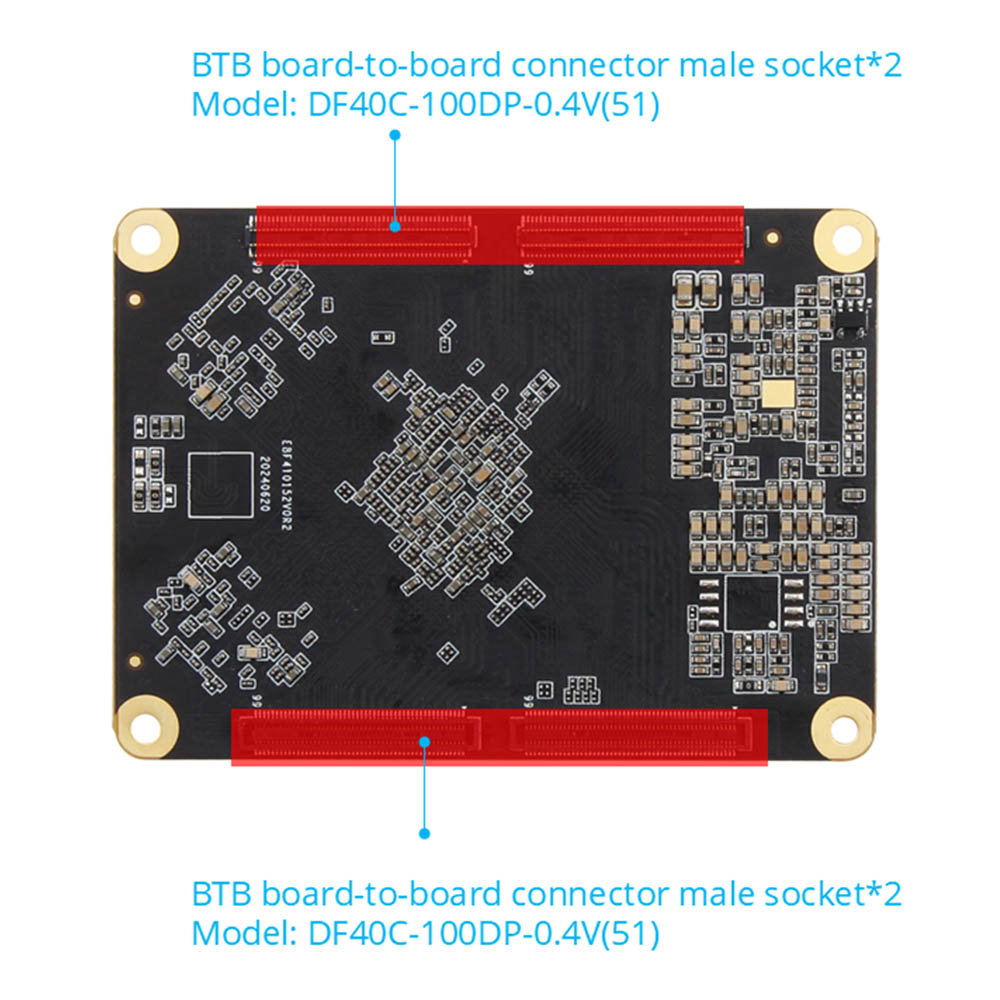

● Connector: Male connector: DF40C-100DP-0.4V(51) Female connector: DF40C-100DS-0.4V(51)

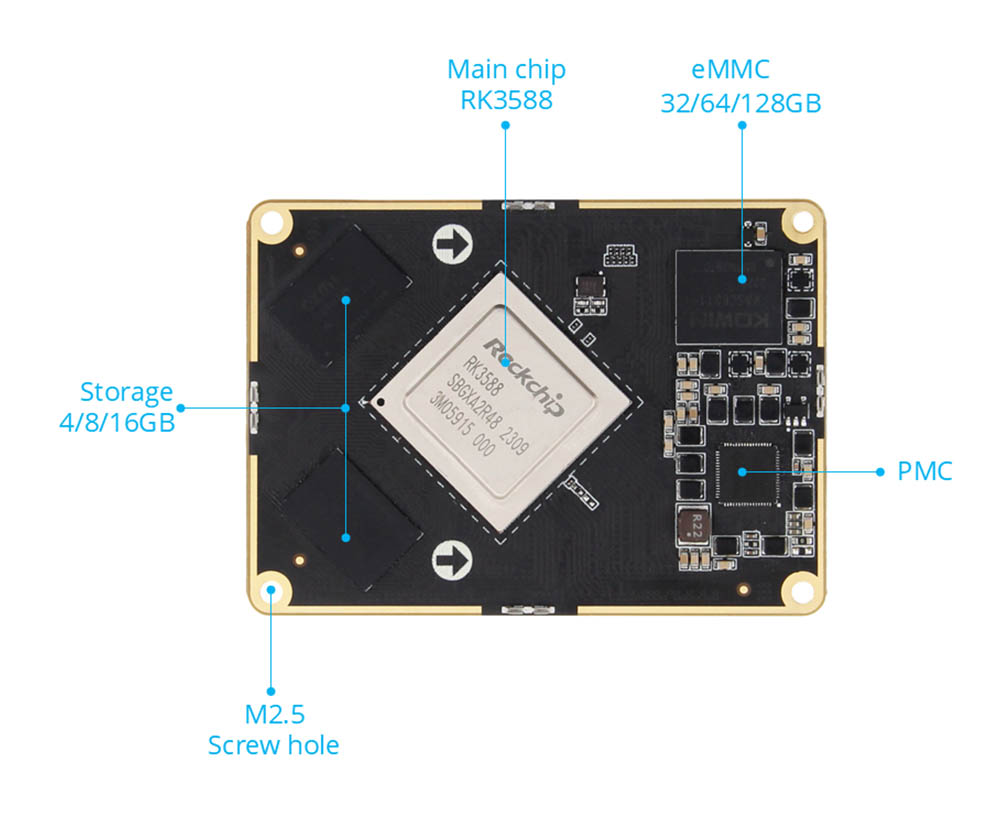

● Main chip: RK3588 (quad-core A76 + quad-core A55, Mali-G610, 6TOPS computing power) BTB leads to 400 pins, 0.5mm spacing, leads to all I0
● Memory: 4/8/16GB, LPDDR4/4x
● Storage: 32/64/128GB. eMMC
● Connector: Male: DF40C-100DP-0.4V(51) Female: DF40C-100DS-0.4V(51)

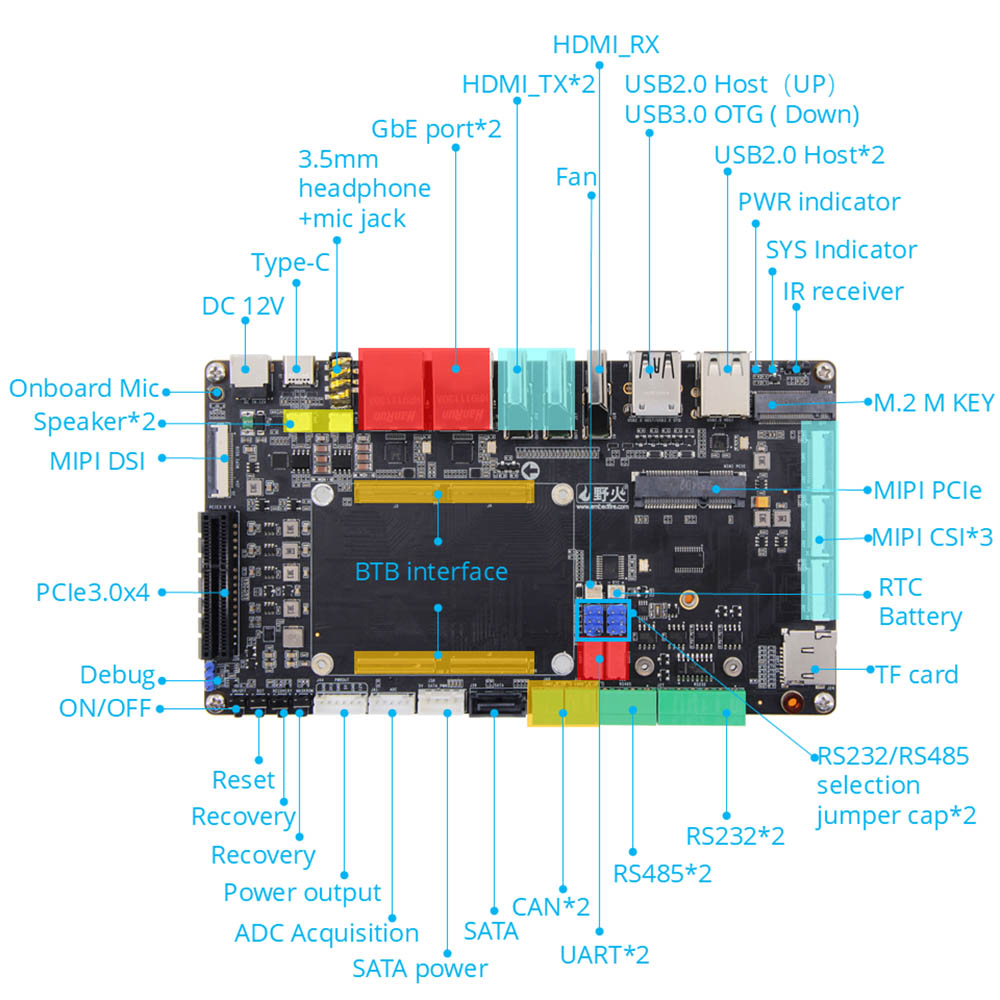

● Power interface: 12V@2A DC input, DC interface*1; power output interface*1

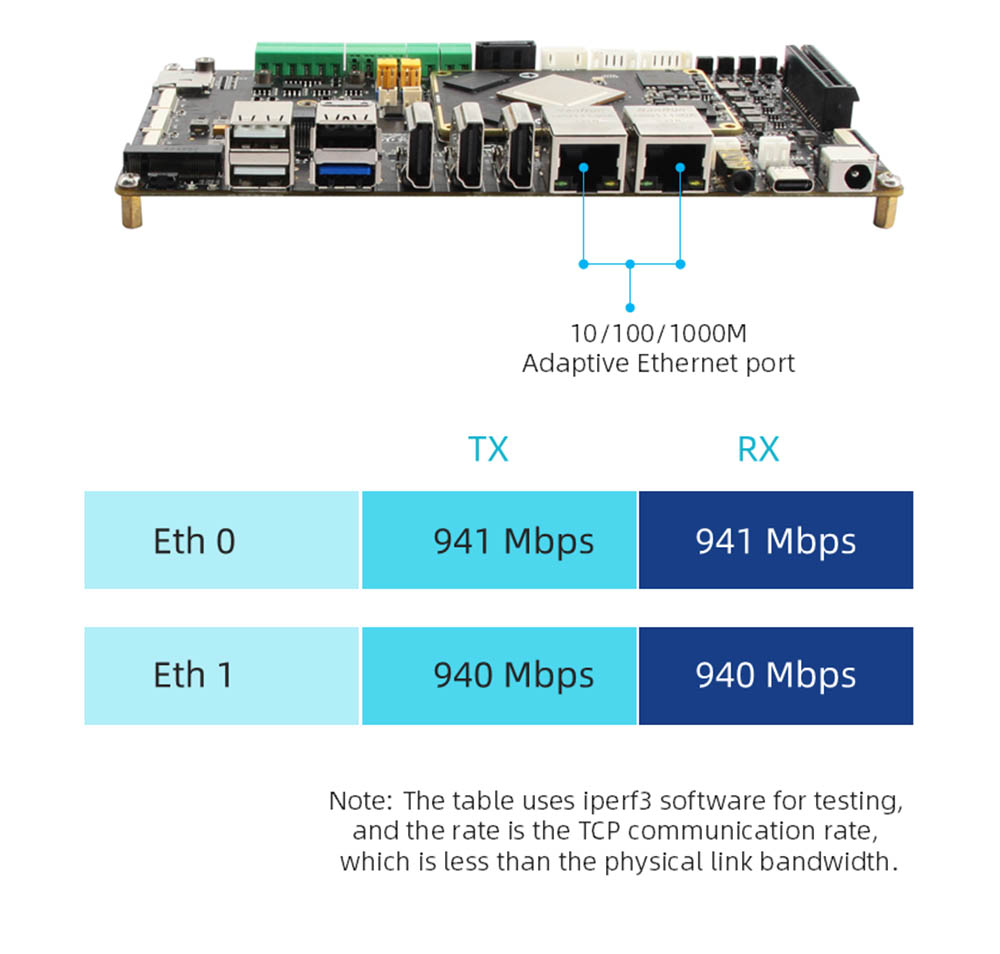

● Ethernet: Gigabit network port*2, support 10/100/1000Mbps data transmission rate
● HDMI: HDMI12.0 input*1, up to 3840x2160@60FPS; HDMI2.1 output*2, supports multiple screens with other screens, maximum resolution 7680x4320@60Hz (8K resolution)
● MIPI-DSI: MIPI screen interface*2 (front*1, back*1), can be plugged into Wildfire MIPI screen, supports multiple screens with other screens; single MIPI mode maximum resolution 1920*1080@60HZ

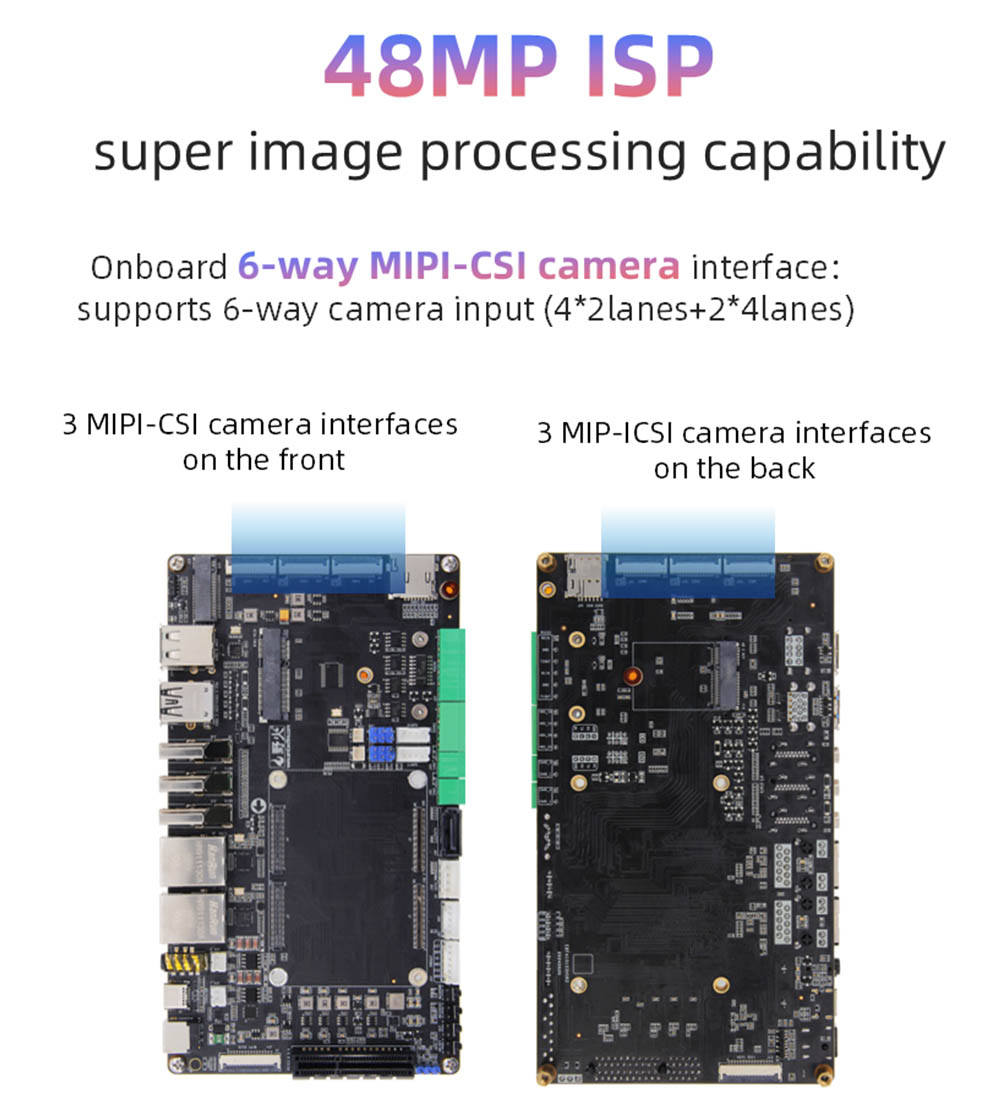

● MIPI-CSI: MIPI camera interface*6 (front*3, back*3), can be plugged into Wildfire MIPI camera
● USB2.0: USB-HOSTType-A interface*3
● USB3.0: USB-OTGType-A interface*1; Type-C interface*1, can be used for firmware burning, supports DP1.4 protocol

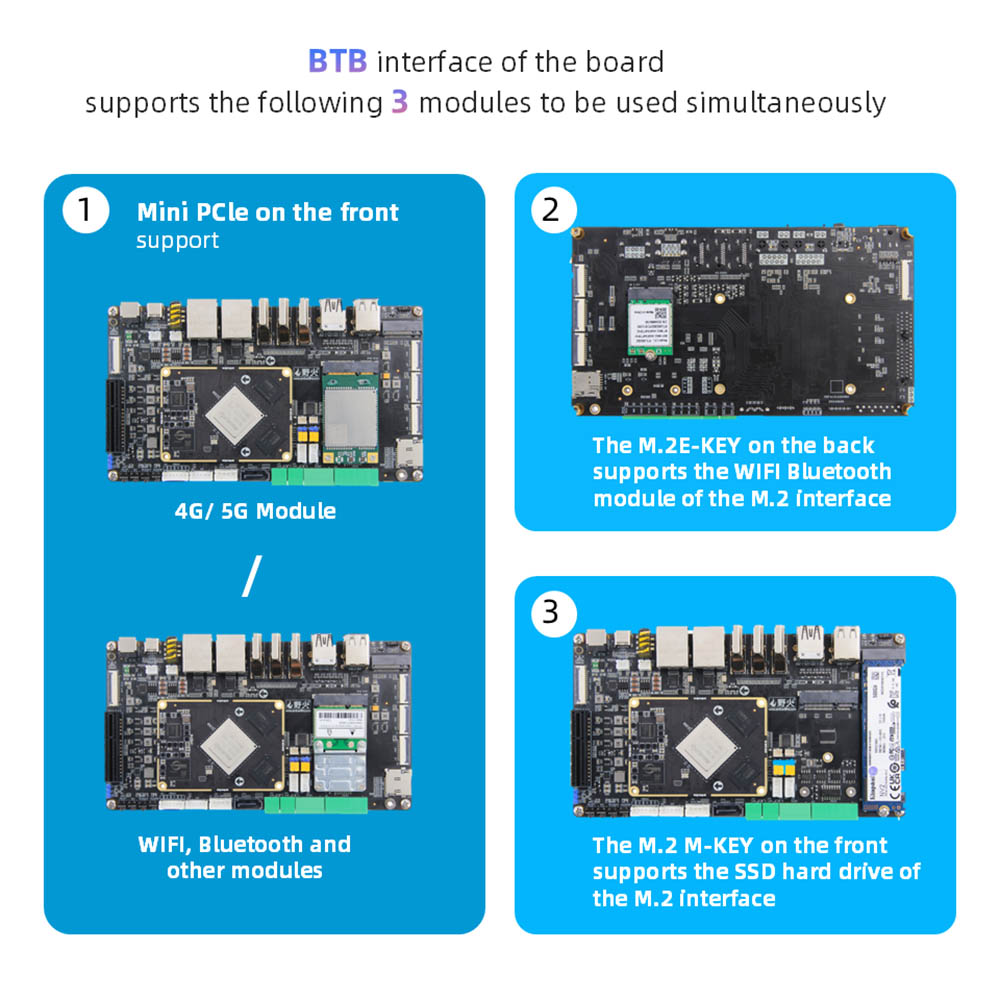

● PCle interface: Mini-PCle interface*1, can be used with full-height or half-height WIFI network card, 4G module or other Mini-PCle interface module: PCle3.0X4 interface*1
● M.2 interface: M.2EKEY interface*1, supports M.2 E-Key wireless network card module; M.2 M KEY interface*1, supports M.2 M-Key PCle3.0*4Lanes specification 2280 hard disk
● TF card holder: Micro SD (TF) card holder*1, supports TF card boot system, up to 512GB
● SIM card holder: SIM card holder*1, SIM card function needs to be used with 4G module
● SATA interface: Standard SATA interface*1; SATA power interface*1, supports 12V output
● CAN: CAN*2
● ADC: ADC acquisition interface*1
● Debug serial port:
● Debug serial port*1 (UART2), default parameter 1500000-8-N-1; UART serial port*2 (UART7&UART9); RS232*2 (UART4&UART7);
● RS485*2 (UART4&UART7); RS232/RS485 selection jumper interface*2
● Audio: Onboard MIC microphone*1; SPK speaker interface*2, can connect 3W power speaker headphone output + microphone input 2-in-1 interface*1
● Button: ON/OFF button*1; MaskRom button*1; Recovery button*1; Reset button*
● LED: Power indicator*1; System indicator*1
● Infrared receiver: Support infrared remote control function
● RTC: RTC power socket*1
● Fan interface: Support installation of 5V or 12V fan cooling
● AI Edge Computing：Smart Security，Smart Transportation，Smart city, video analytics.
● Industrial Automation: PLC control, machine vision.
● Robotics: AI-powered autonomous navigation.
● In-vehicle applications： In-car entertainment system, in-car navigation system.
● Digital Signage: 8K multi-screen advertising.
● Medical equipment: medical endoscopes, ultrasound imaging systems
● Datasheet PDF
● Hardware User Manual
● Linux/Android Documentation
● Contact Technical Support
Interested in Customization? Get a Free Consultation Now!
