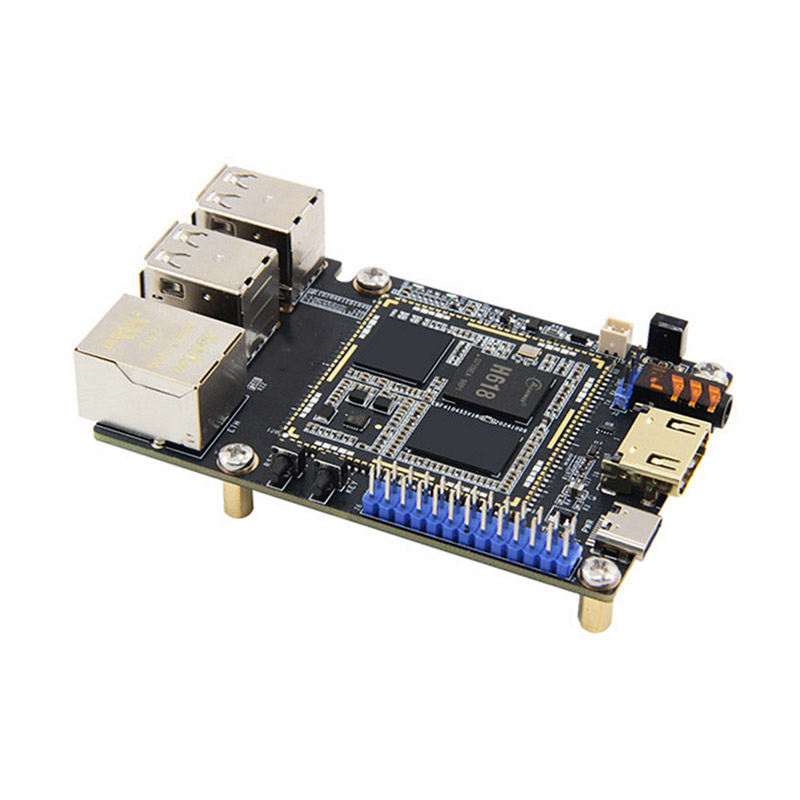

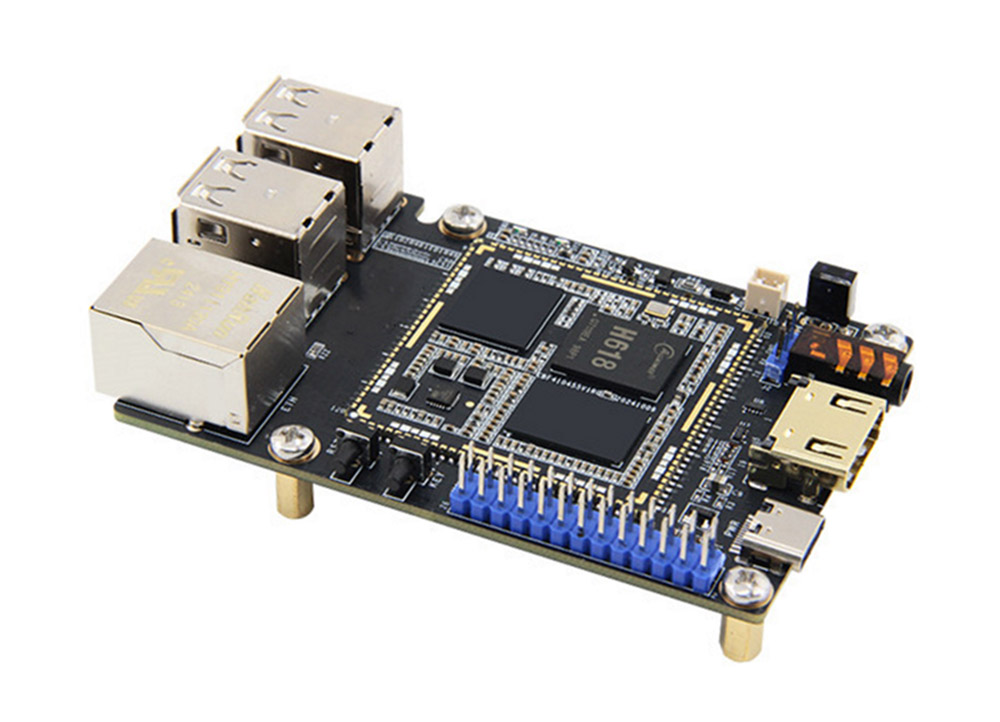

The H618 Single Board Computer developed by Thinkcore Technology Co., Ltd is a high efficiency industrial SBC for demanding IoT and edge computing applications. It provides dual-band WiFi 6 (802.11ax) + BT5.0, which has 3× faster wireless speeds than WiFi 5, ideal for congested industrial environments and provides 26-Pin GPIO expansion, a Flexible interfacing for sensors, actuators, and industrial protocols.

Product Detail

Product Introduction

This H618 SBC is ideal for:

✔ Industrial Automation (RS485/Mod bus gateways)

✔ Smart City Infrastructure (WiFi 6 mesh networks)

✔ Edge AI Prototyping (Linux/Android support)


Why Choose Thinkcore?

● 10+ Years as a trusted manufacturer of embedded solutions

● Customization Support: Provide software customization and hardware (PCB) customization

● Global Certification: FCC/CE/ROHS compliant

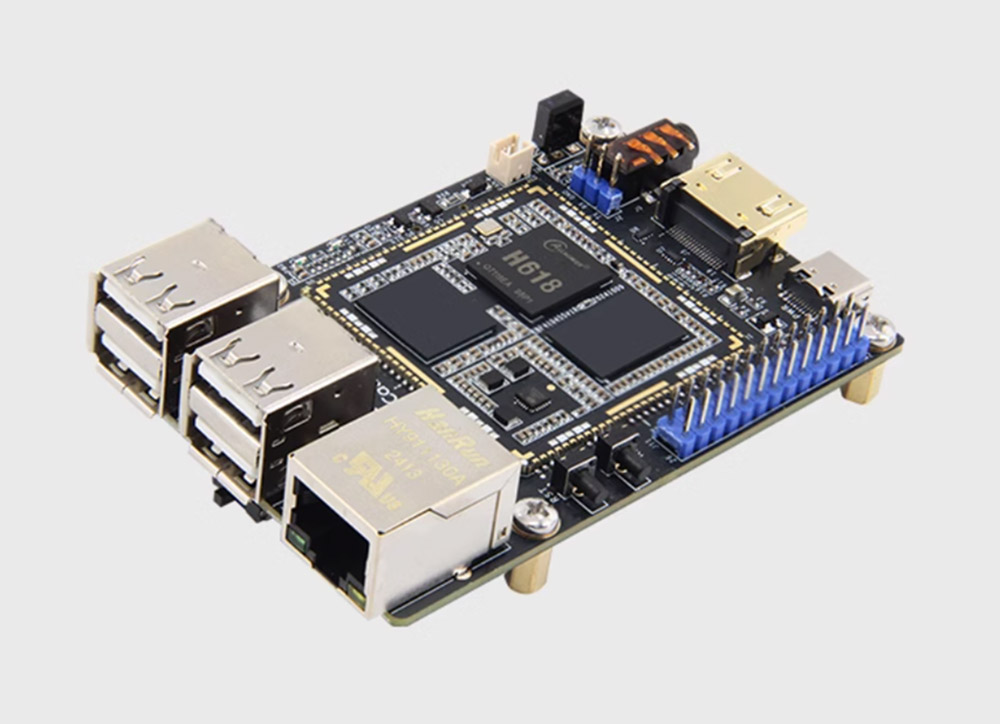

The H618 Single Board Computer is an ARM-based single board computer mainly aimed at makers and embedded developers. It can be used as a mobile single board computer and embedded motherboard, with functions such as office, education, programming development, and embedded development. With dual-band WiFi 6 (802.11ax) and Bluetooth 5.0, it delivers 3× faster wireless speeds than WiFi 5. Combined with Gigabit Ethernet and 26-pin expansion interface, this H618 board is suitable for:

● Industrial IoT gateways

● Edge AI prototyping

● Digital signage & kiosks


Technical Specifications

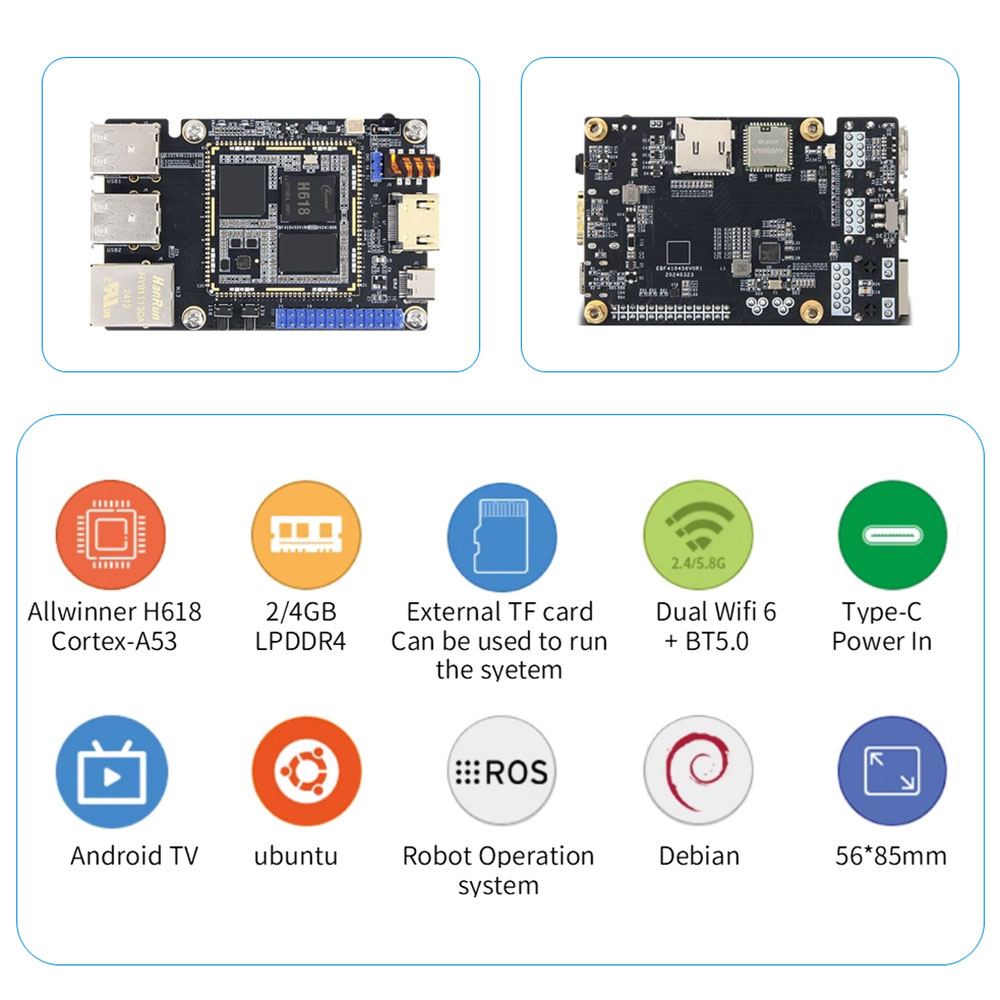

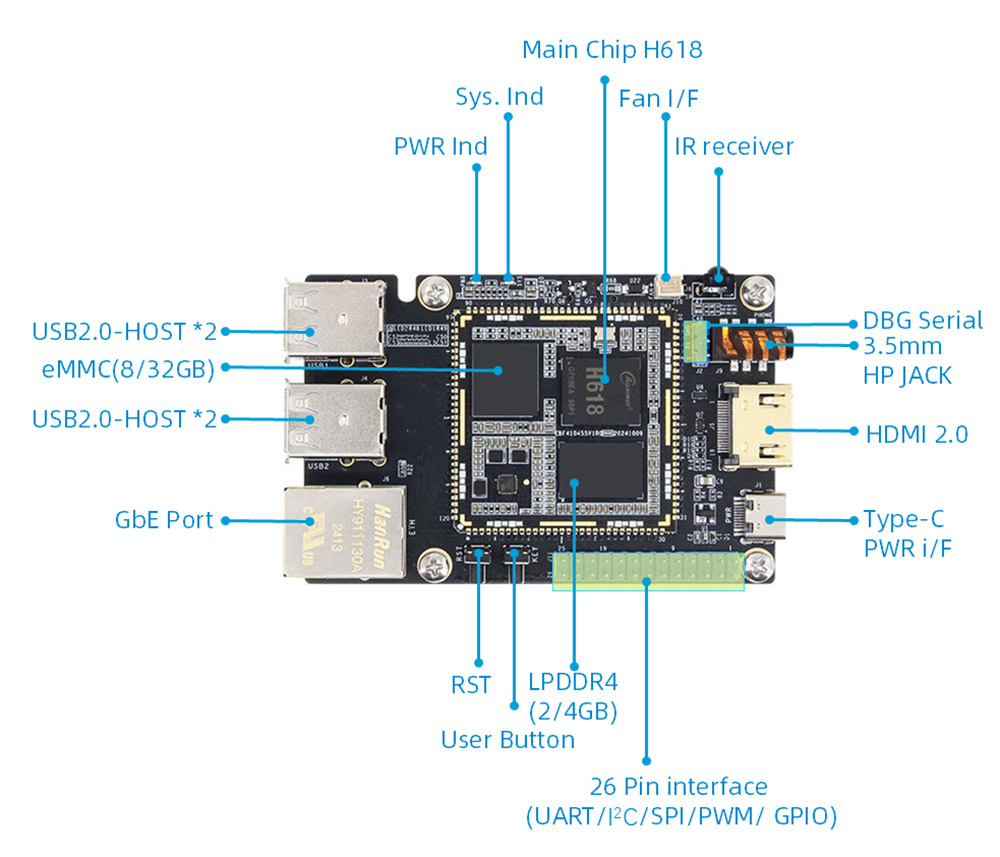

1.CPU: Main chip: All winner H618, 4-core 64-bit Cortex-A53

2.GPU: Mali G31 MP2

3.Memory: Onboard LPDDR4, 2/4GB

4.Storage: EMMC, 8/32GB, supports EMMC boot system

5.Power interface: 5V@3A DC input, Type-C interface, can also be used to burn images

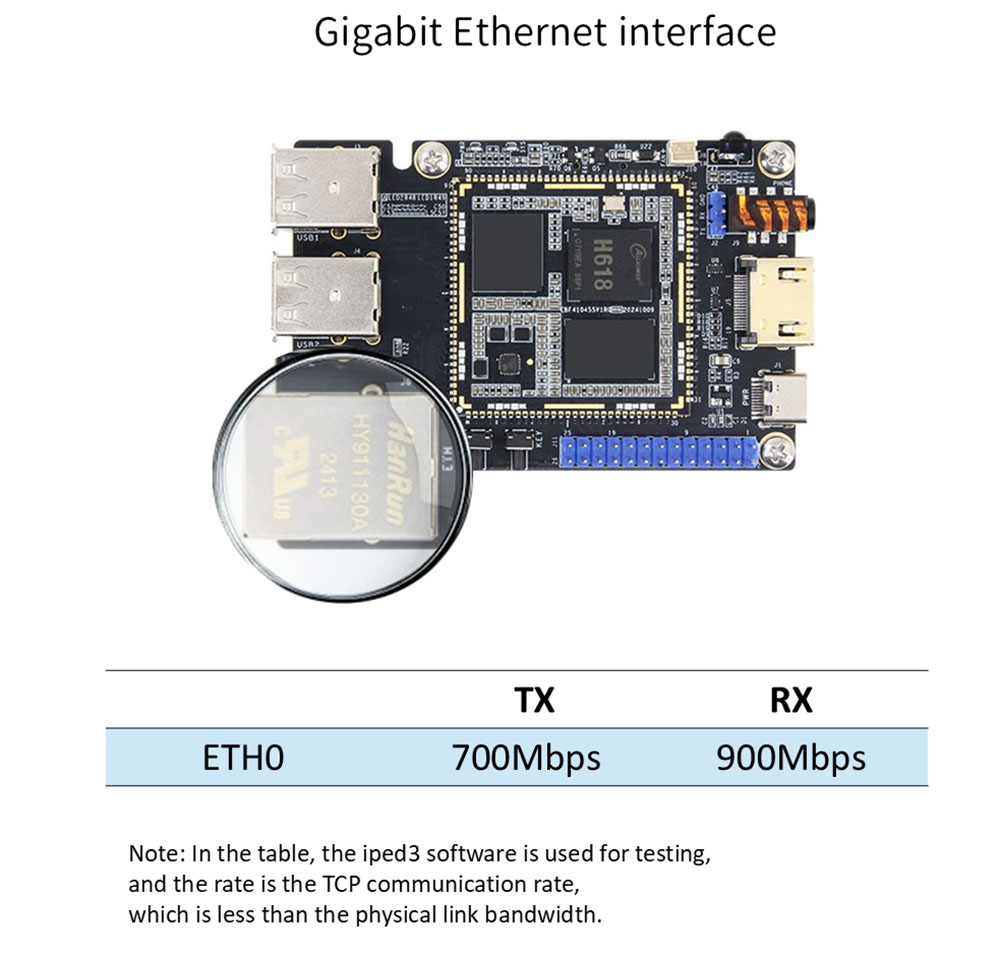

6.y Ethernet: 10/100/1000M adaptive Ethernet port

7.USB2.0: USB HOST Type-A interface*4

8.USB-OTG selection switch: Host when switched to Type-A, Device when switched to Type-C

9.HDMI: HDMI2.0 screen interface*1, supports 1920x1080@60fps under Linux system and 4096x2160@60fps under Android TV system

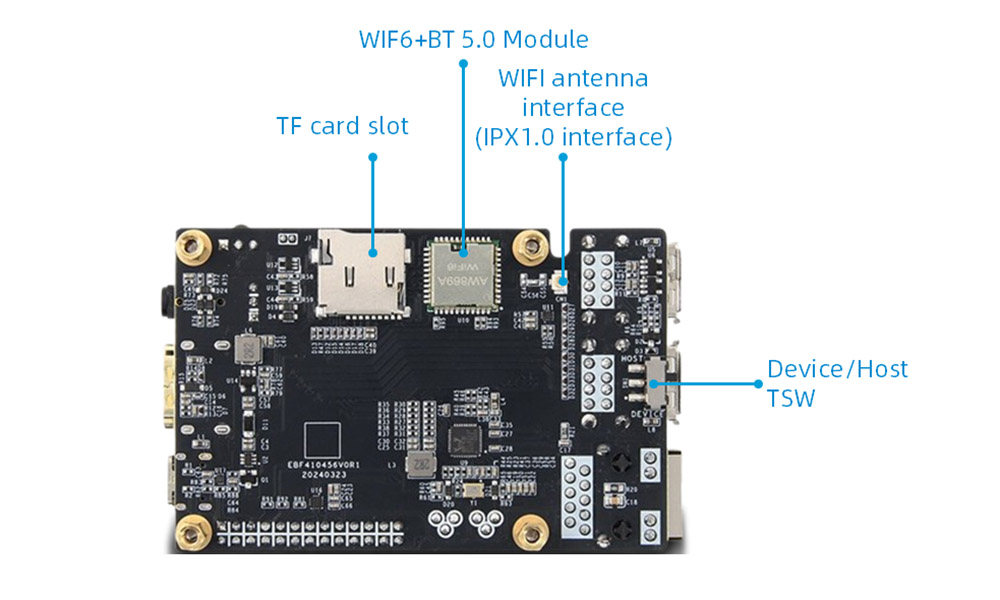

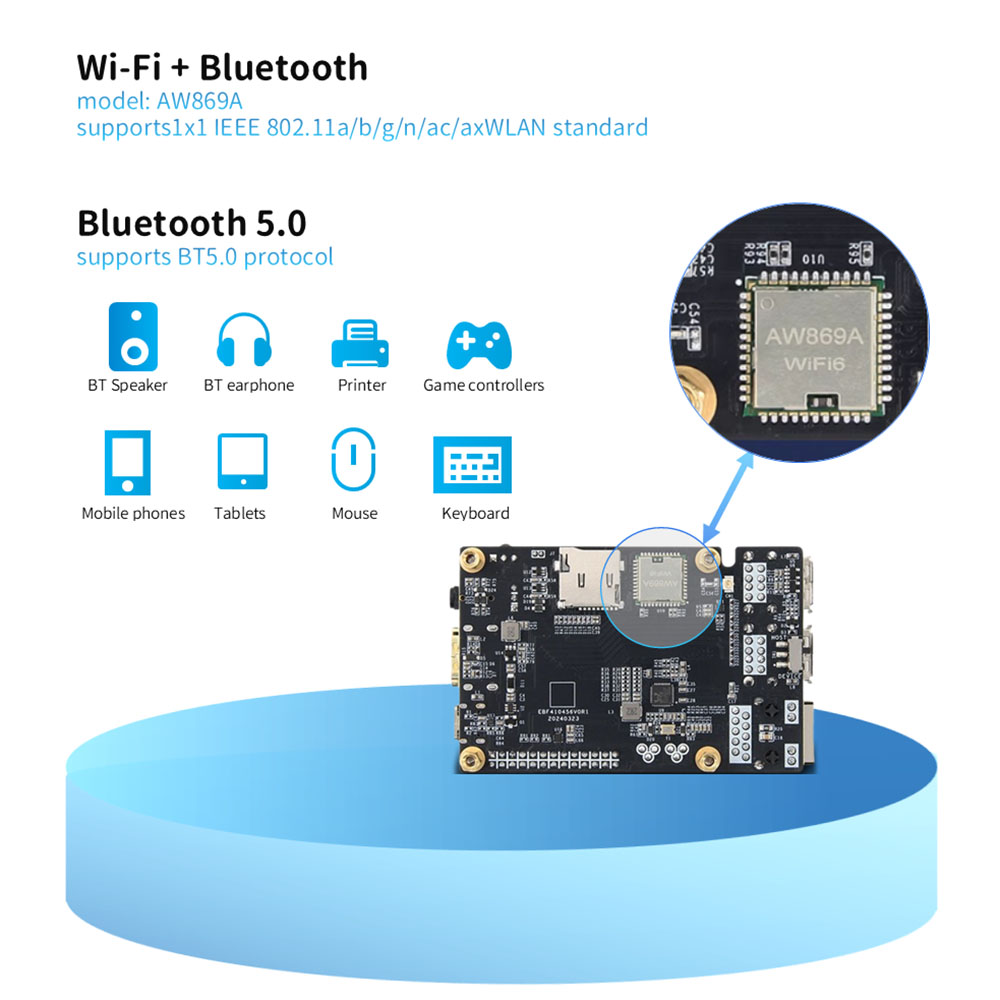

10.WiFi+Bluetooth: Onboard support 2.4G/5.8G dual-band WiFi6+BLE5.0, model: AW869A

11.TF card holder: SD3.0 interface, supports up to 512GB, supports TF card boot system

12.I0 interface: 26 Pin 2.54 pin interface, supports GPIO, SPI, I2C, UART, PWM functions

13.Debug serial port: default parameter 115200-8-N-1

14.Audio: 3.5mm headphone interface*1

15.Button: Reset button*1, user button*1

16.LED: Power indicator*1; System indicator"1

17.Infrared receiver: Support infrared remote control function

18.Fan interface: Support installation of 5V fan for heat dissipation

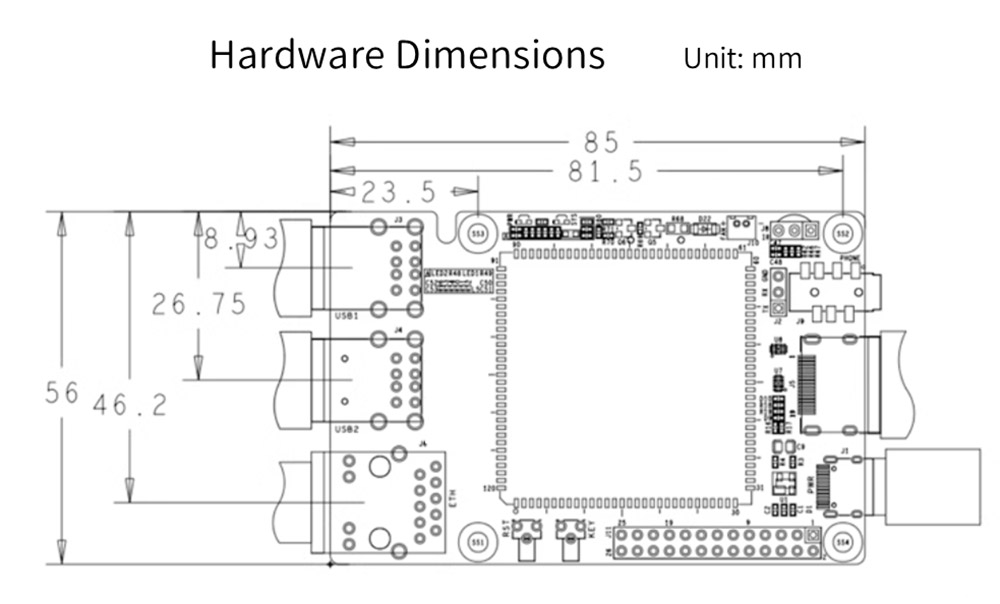

19.Size: 56*85mm
